Physical vs. Virtual Testing: How CFD Transforms Product Development

The Cost and Complexity of Physical Testing

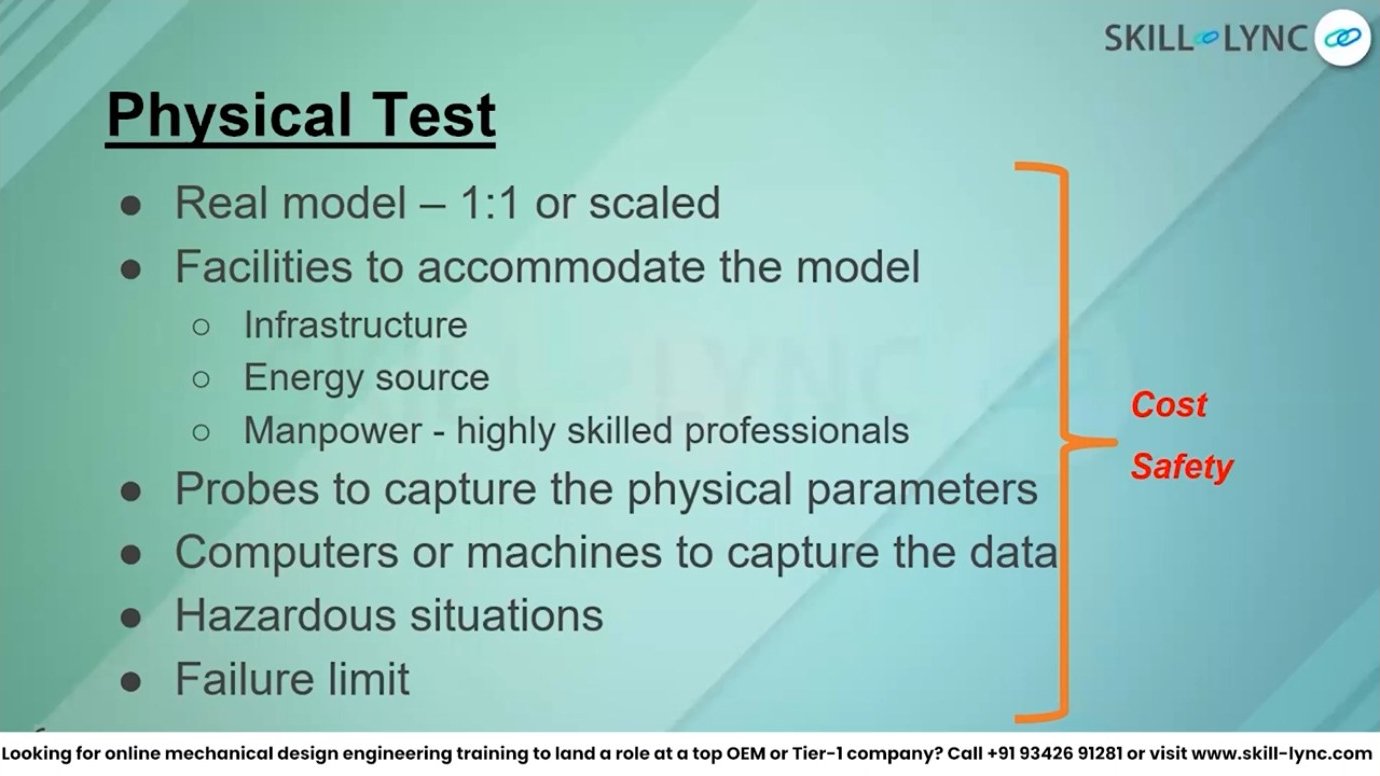

Physical testing has long been the gold standard for validating engineering designs. When aerospace engineers need to understand how air flows over a wing, they build a full-scale model, transport it to a wind tunnel facility, and run controlled experiments. The process demands enormous resources: specialized infrastructure, heavy machinery to handle large components, skilled personnel to operate complex instrumentation, and probes carefully positioned across the test article to capture pressure, velocity, and other flow parameters.

These tests are not trivial undertakings. A single wing test can involve months of preparation, billions in facility construction, and significant safety considerations. If something goes wrong during the test—a component failure, a sensor malfunction, or unexpected structural behavior—the entire process may need to be repeated. Moreover, certain conditions are simply too hazardous to replicate physically. Extreme temperatures, catastrophic failure scenarios, or environments where human presence poses unacceptable risk all fall outside the practical reach of physical experimentation.

Despite these drawbacks, physical testing remains indispensable in scenarios where real-world validation is legally required or where the complexity of the phenomenon defies accurate modeling. The key question for modern engineering is not whether to test physically, but when—and how to minimize the need through complementary approaches.

Virtual Testing as a Design Tool

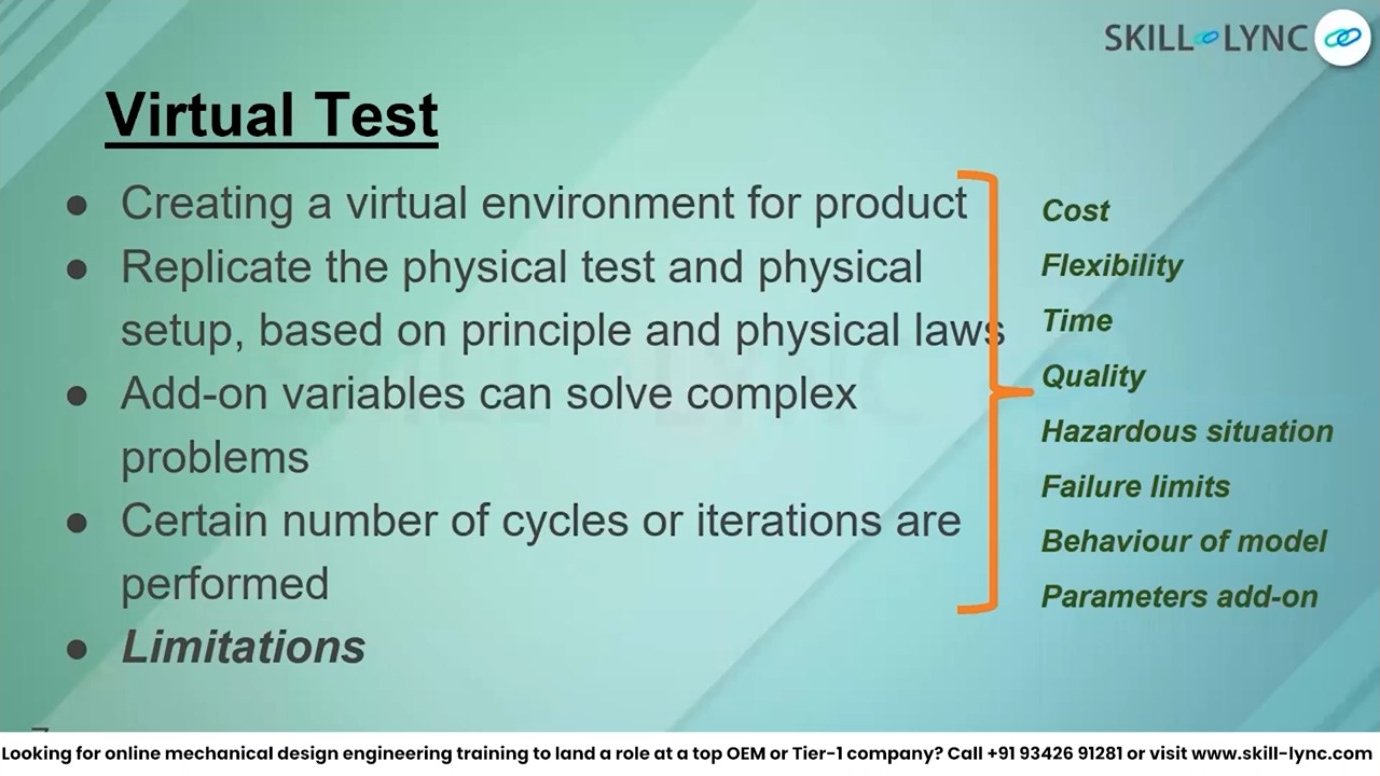

Virtual testing through computational fluid dynamics offers a fundamentally different workflow. Instead of fabricating a prototype and transporting it to a facility, engineers create a digital representation of the product and simulate its interaction with fluids using numerical methods. The simulation solves governing equations—conservation of mass, momentum, and energy—on a discretized domain, predicting flow behavior without moving air or burning fuel.

The advantages are substantial. Virtual tests eliminate the need for physical models, reducing both cost and lead time. Engineers can explore hazardous operating conditions—combustion at 1,200°C, structural failure under extreme loads, or turbulent flow separation at high Reynolds numbers—without endangering personnel or equipment. Changes to geometry or operating conditions require only adjustments to the computational model, not weeks of fabrication and setup.

However, virtual testing is not a panacea. Real physics is vastly more complex than any simulation can capture. Turbulence, in particular, exhibits randomness and multi-scale behavior that numerical models approximate rather than resolve exactly. Assumptions embedded in turbulence models, boundary conditions, and discretization schemes introduce uncertainty. A simulation might predict trends accurately but diverge from reality in magnitude or fine detail.

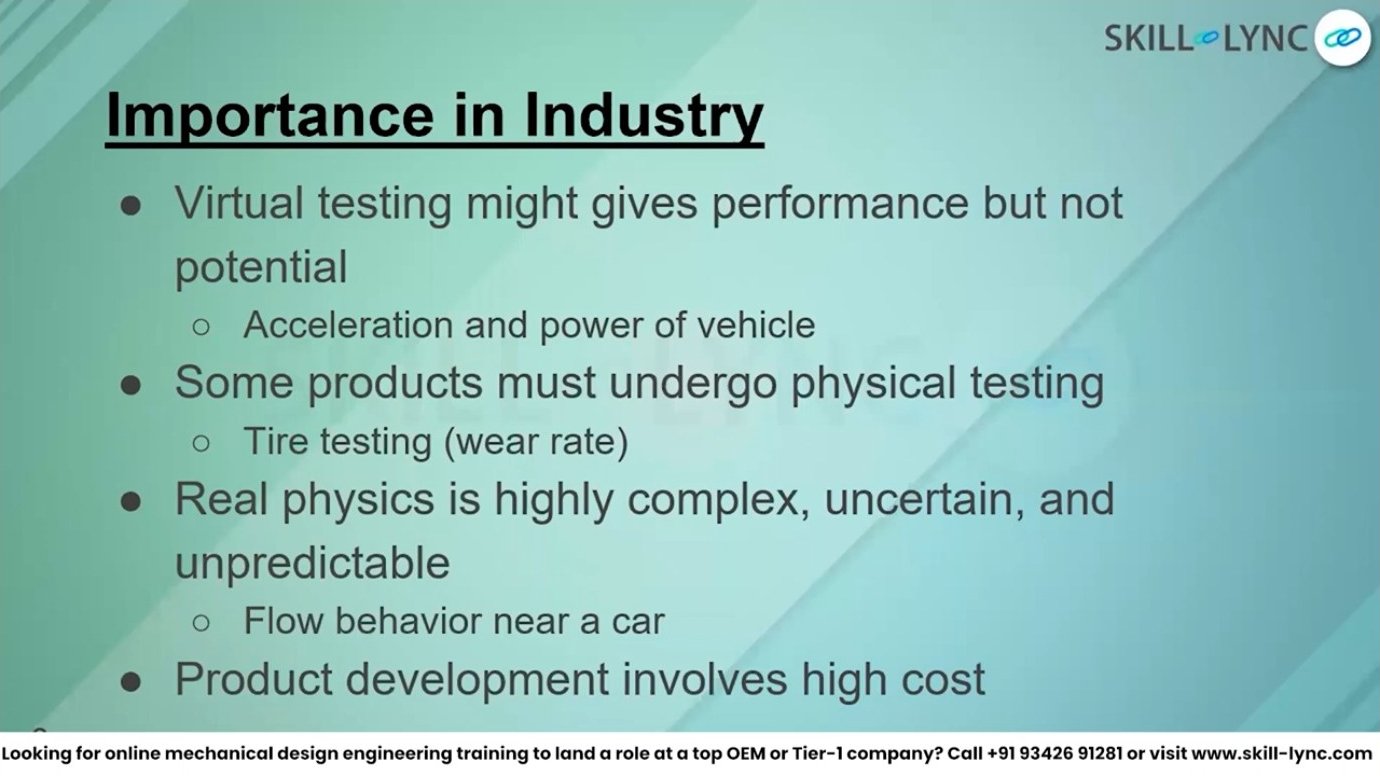

Combining Physical and Virtual Approaches

Modern product development leverages both paradigms in tandem. The strategy is to use virtual simulations extensively during early design phases—exploring variations, optimizing geometry, and identifying critical parameters—before committing to physical tests for final validation. This hybrid approach balances the flexibility and cost-effectiveness of computation with the ground truth provided by experiments.

Certain products must undergo physical testing regardless of simulation fidelity. Tire wear, for instance, depends on driver behavior, road surface irregularities, and real-time load distribution in ways that defy accurate virtual replication. Combustion phenomena, though simulatable, require experimental correlation to account for fuel chemistry and ignition dynamics. In such cases, CFD informs test planning—narrowing the parameter space, predicting trends, and ensuring that physical tests focus on the most critical questions.

The outcome is an optimized design workflow. Engineers iterate virtually until confidence is high, then validate key assumptions with targeted physical tests. Deviations between simulation and experiment inform model improvements, creating a feedback loop that refines both the virtual tools and the physical understanding. Acceptable deviation thresholds depend on the application, but the principle remains: use computation to minimize the number of expensive, time-consuming physical trials.

What Computational Fluid Dynamics Actually Is

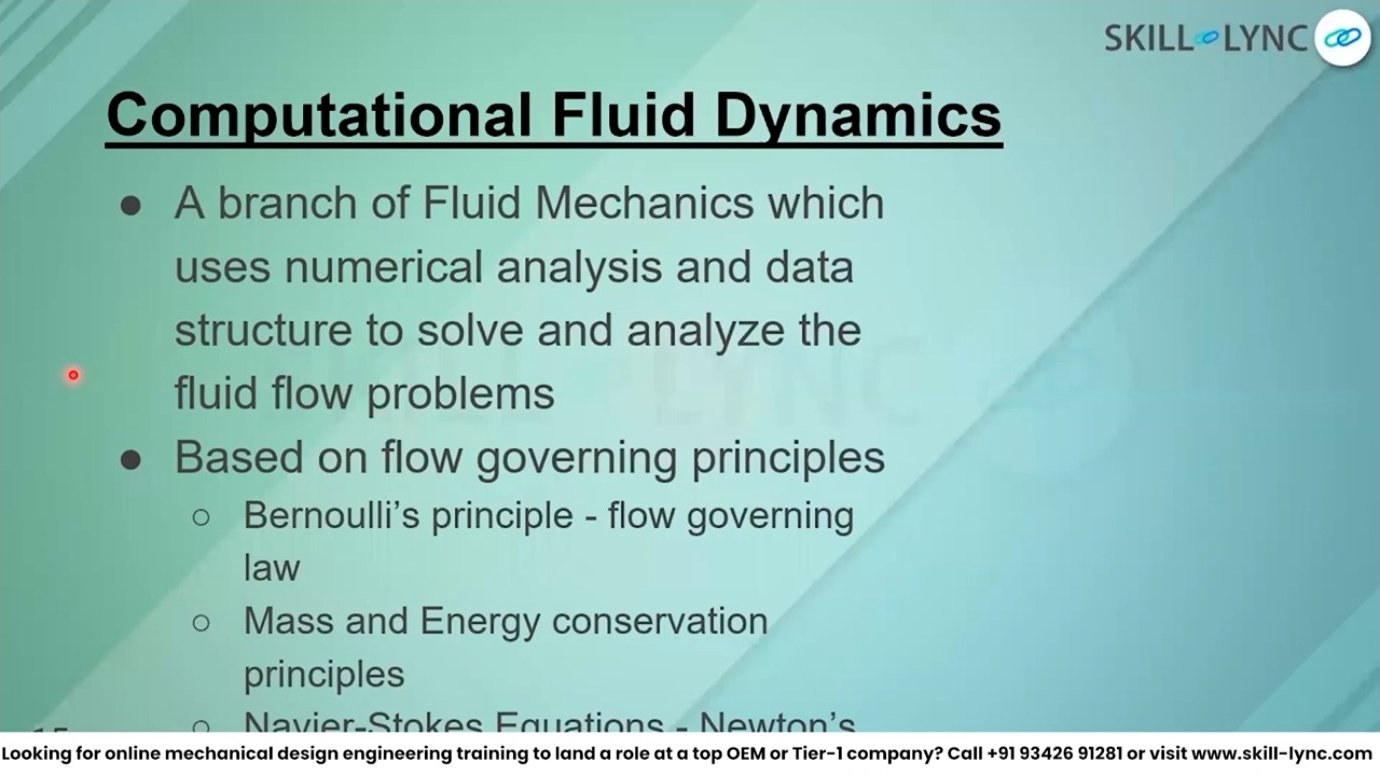

At its core, computational fluid dynamics is a branch of fluid mechanics that uses numerical analysis and computers to solve problems involving fluid flows. The foundation rests on conservation laws: mass, momentum (expressed through the Navier-Stokes equations), and energy. These principles govern how fluids behave, whether air moving past an aircraft wing or coolant circulating through an engine.

These governing equations, expressed as partial differential equations, are converted into algebraic form through discretization. The continuous domain is divided into a finite number of small volumes—a mesh—and the equations are solved at discrete points. Numerical methods, such as finite volume or finite element schemes, approximate the solution by balancing fluxes across cell boundaries and iterating until convergence.

The result is an approximate solution. Assumptions about turbulence modeling, boundary conditions, and fluid properties introduce uncertainty, but disciplined application of validated methods yields predictions accurate enough to guide design decisions. The key is understanding the limitations: CFD provides insight into trends and magnitudes, not exact replication of every eddy and vortex in a real flow.

Boundary Layers and Flow Separation

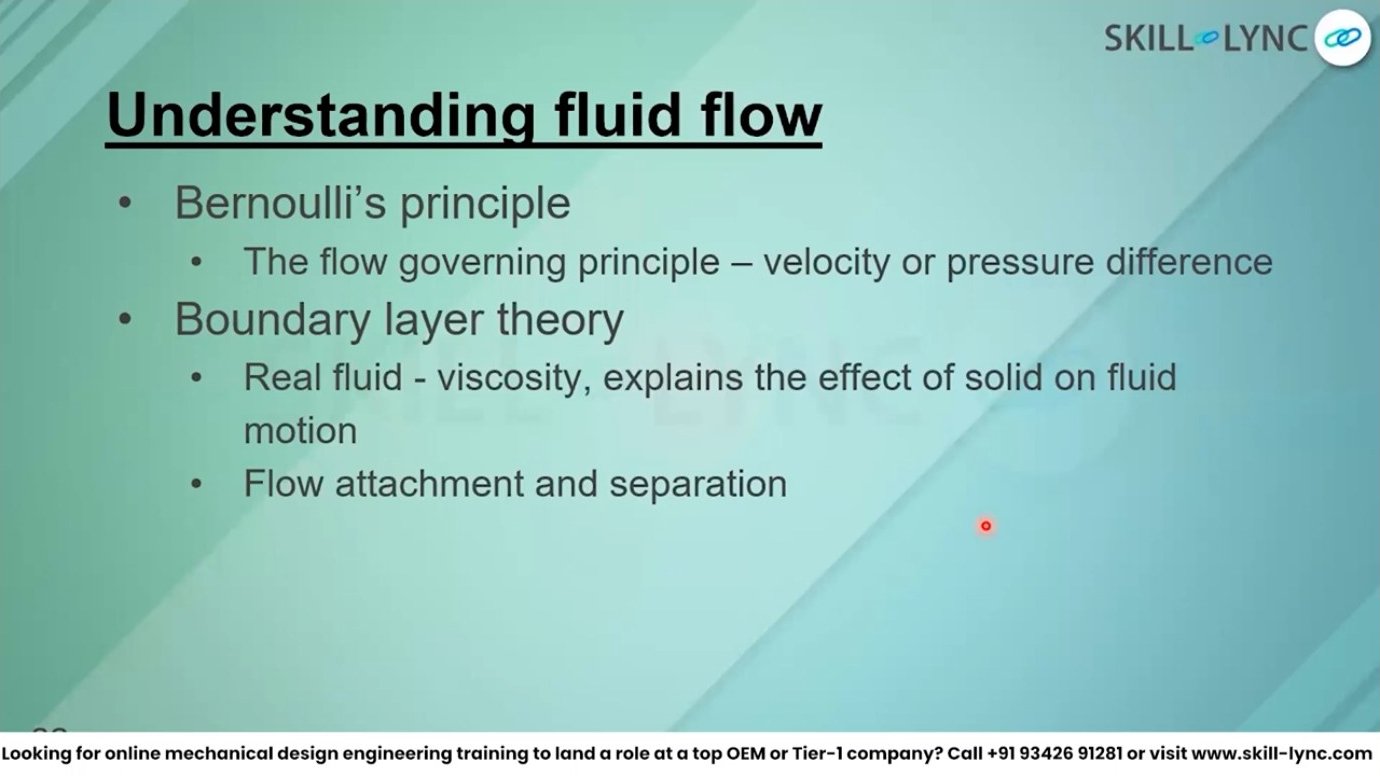

One of the most critical concepts in fluid dynamics is the boundary layer—the thin region adjacent to a solid surface where viscous effects dominate. At the wall, the no-slip condition dictates that fluid velocity is zero. Moving away from the surface, velocity increases until it matches the freestream value. The thickness of this transition zone depends on Reynolds number, surface roughness, and pressure gradients.

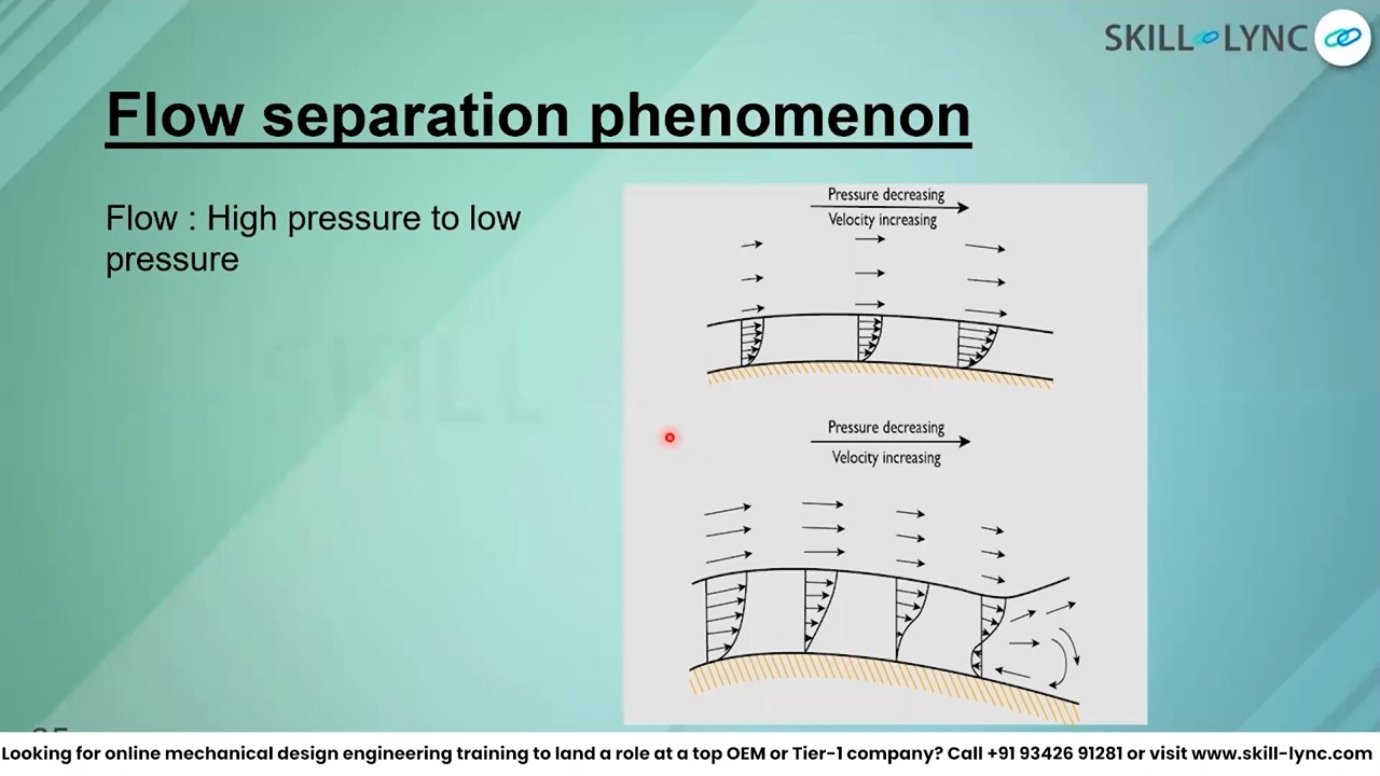

Boundary layer behavior determines skin friction drag and heat transfer. In attached flow, the layer remains thin and well-behaved. But when pressure increases in the flow direction—an adverse pressure gradient—the layer can separate. Fluid near the wall, which has little momentum, cannot overcome the rising pressure and reverses direction. This creates a recirculation zone, dramatically increasing drag and altering the flow field.

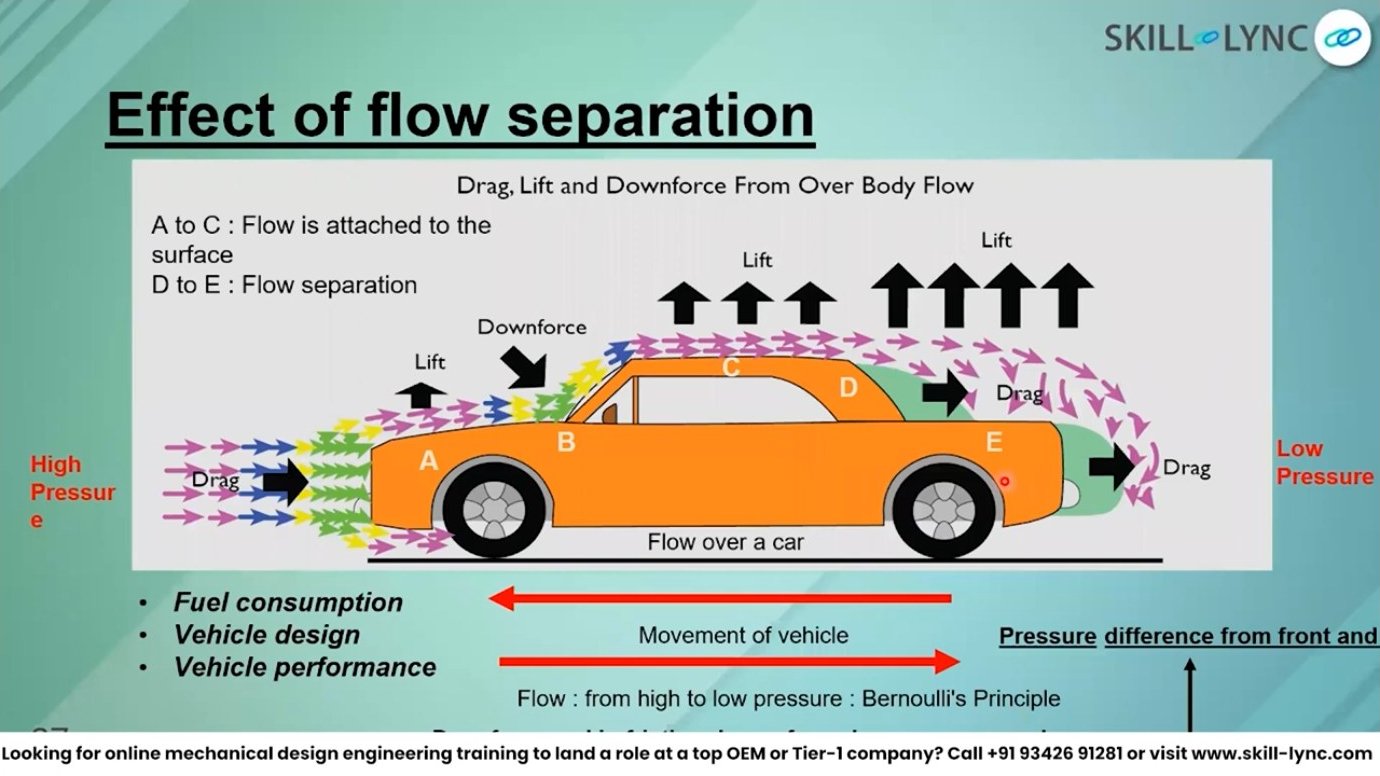

Flow separation is a central challenge in aerodynamics. For a vehicle, separation at the rear creates a low-pressure wake that opposes forward motion. The greater the pressure difference between the front (high pressure stagnation region) and rear (low pressure wake), the higher the drag. Designers aim to delay or minimize separation through careful shaping, trading aesthetic preferences for performance gains.

Turbulence and Its Computational Challenges

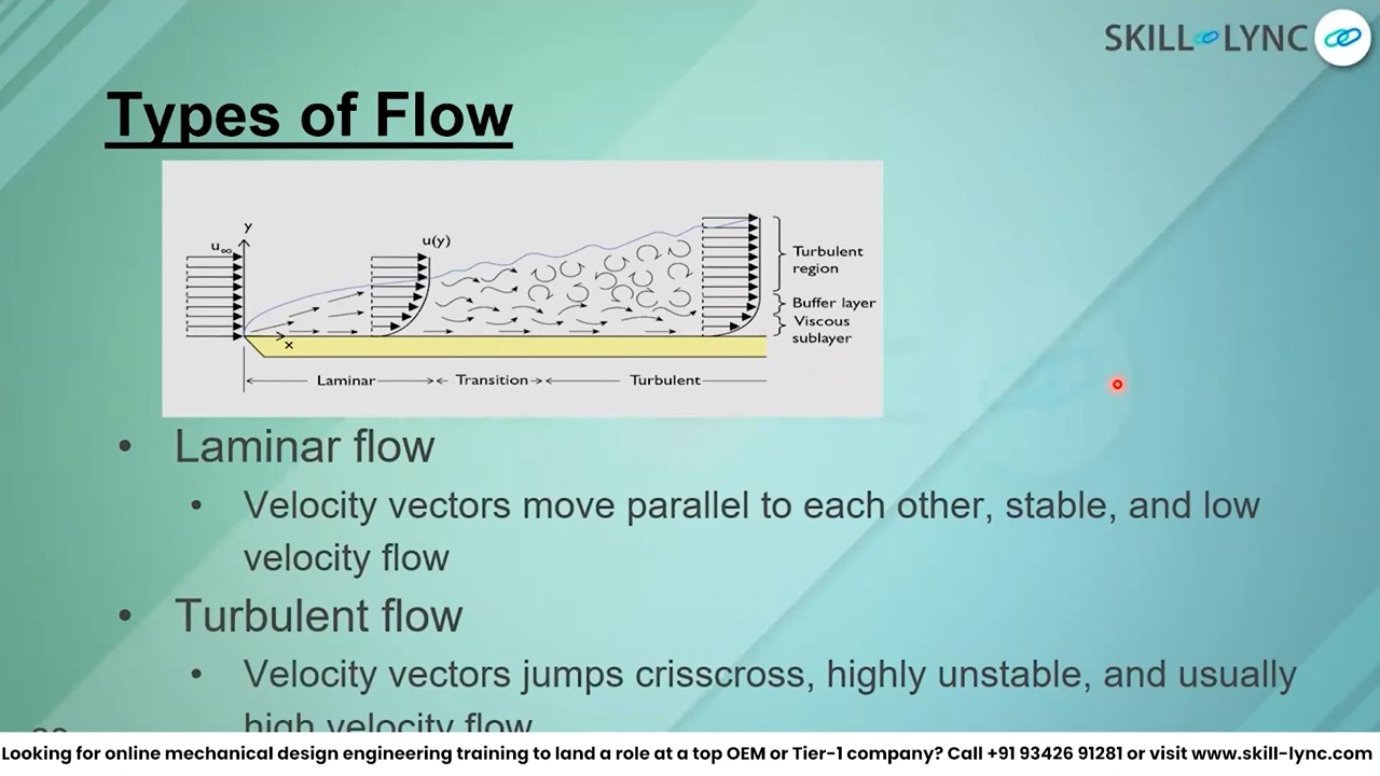

Laminar flows, where fluid layers move smoothly and parallel, are relatively straightforward to simulate. Turbulent flows—characterized by chaotic, three-dimensional motion and a wide range of eddy scales—are far more demanding. Turbulence involves rapid mixing, energy transfer across scales, and inherent randomness that defies simple prediction.

Resolving all scales of turbulence directly—an approach called Direct Numerical Simulation (DNS)—requires prohibitively fine meshes and massive computational resources. For complex geometries like full vehicles, DNS remains impractical. Instead, engineers use turbulence models that approximate small-scale behavior, solving only the larger, energy-containing eddies explicitly. Common models include k-epsilon, k-omega, and variants like SST, each with strengths and weaknesses depending on the flow regime.

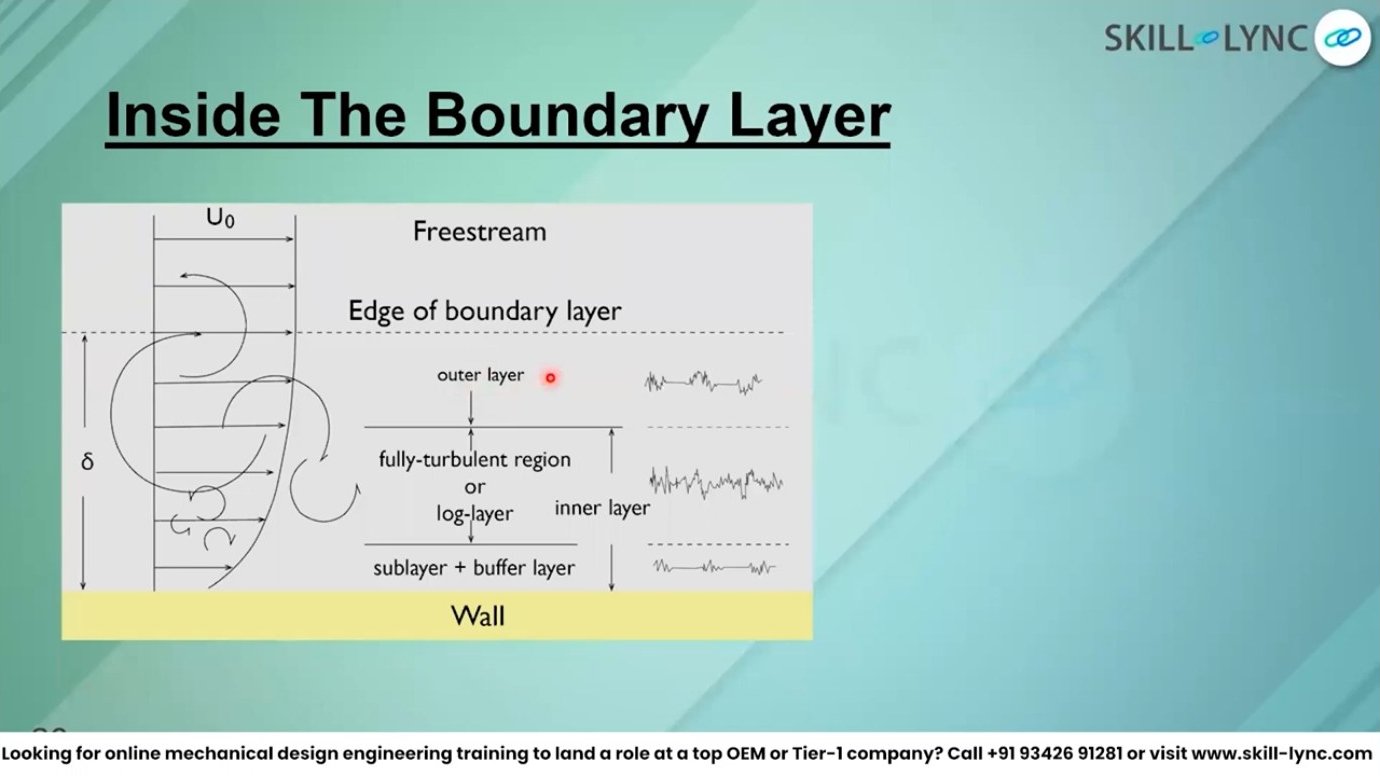

The turbulent boundary layer itself has structure. Nearest the wall is the viscous sublayer, where flow is nearly laminar and viscous shear dominates. Above that is a buffer layer where viscous and turbulent stresses compete. Further out, the log-layer and outer layer are governed by turbulent mixing. Understanding this stratification is crucial for setting up simulations, because the near-wall region dictates skin friction and heat transfer.

Meshing and the Discretization Process

Before any simulation can run, the continuous physical domain must be divided into discrete elements—a process called meshing. The mesh defines where equations are solved and how information propagates through the flow field. Mesh quality and resolution directly influence solution accuracy and computational cost.

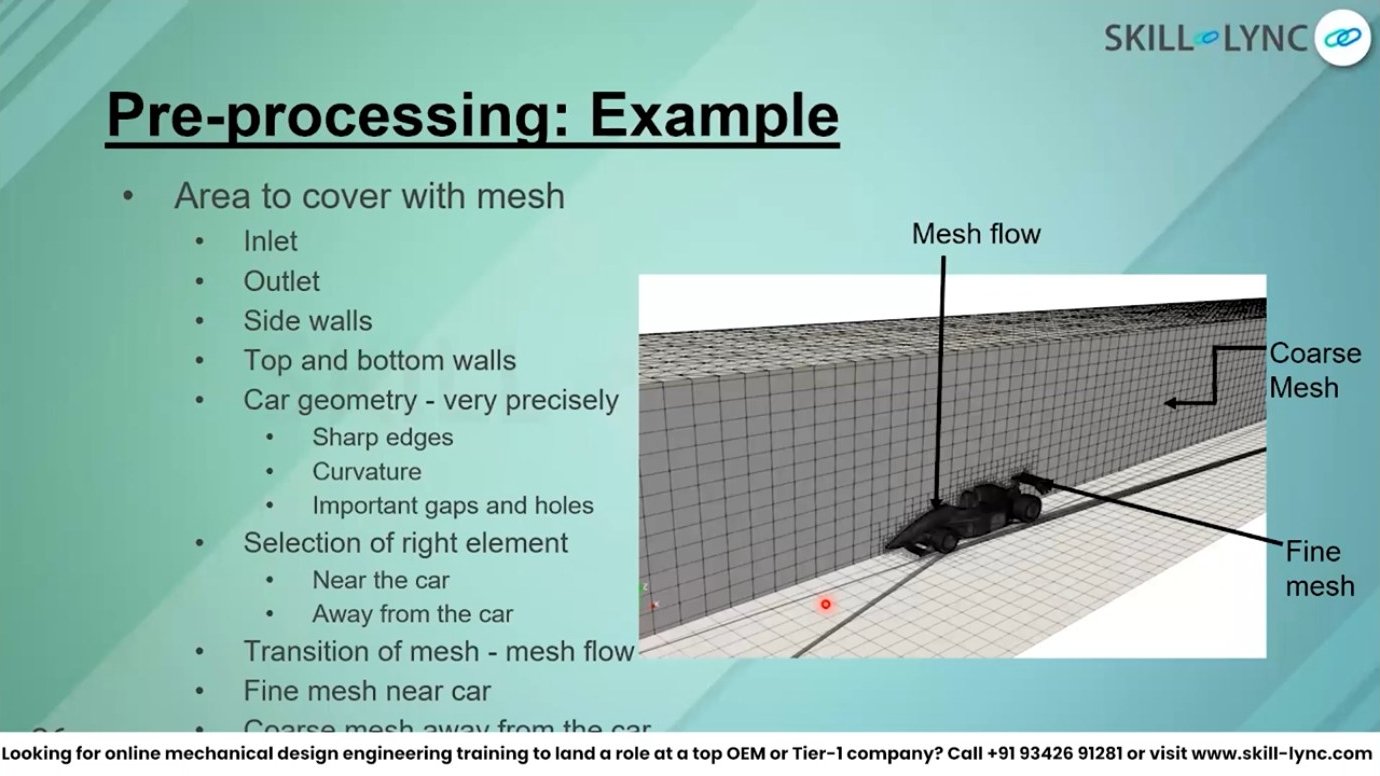

Near surfaces where gradients are steep—boundary layers, shocks, separation zones—fine meshes capture physics accurately. Far from the body, where flow is relatively uniform, coarser meshes suffice. The challenge is distributing resolution intelligently, ensuring that critical regions are well-resolved without wasting cells in low-gradient areas. Structured meshes offer efficiency but struggle with complex geometry; unstructured meshes handle arbitrary shapes but may require more cells for equivalent accuracy.

Meshing is not a one-size-fits-all task. A drag prediction study requires resolving the near-wall region to capture skin friction, necessitating boundary layer meshes with specific growth rates and first-cell heights. A thermal analysis may prioritize accurate temperature gradients at solid-fluid interfaces. The mesh must be designed with the end goal in mind—another instance where understanding the physics precedes using the tool.

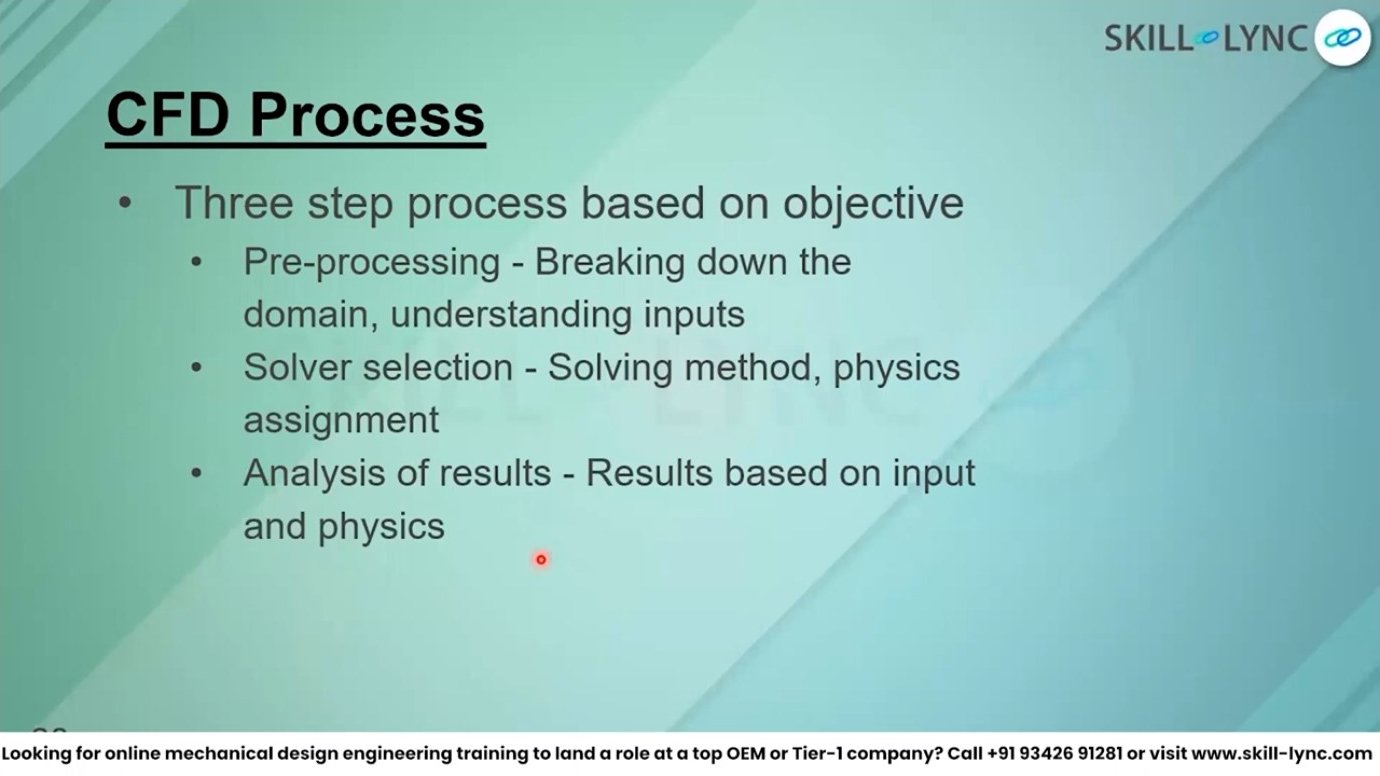

The CFD Workflow: Pre-Processing to Post-Processing

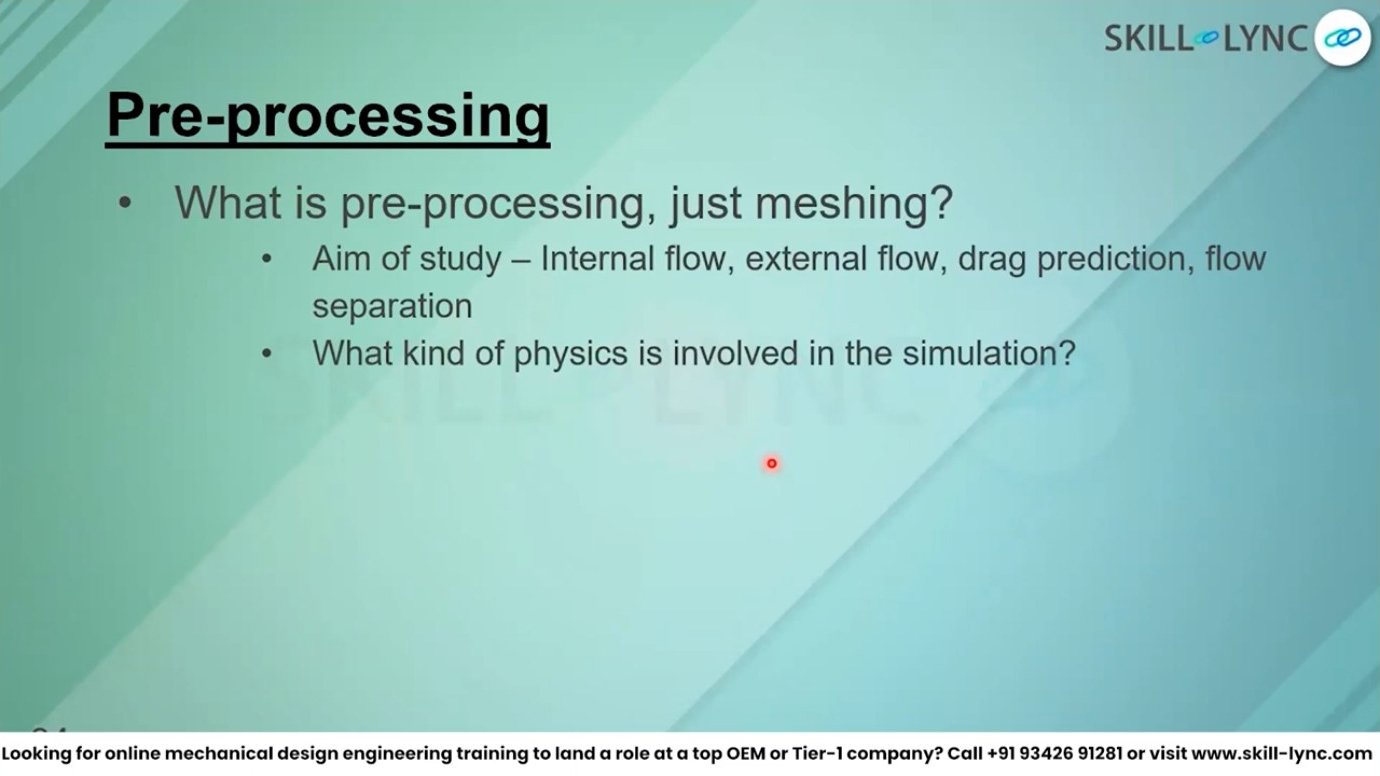

Running a CFD simulation is not simply opening software and clicking 'solve.' The process begins with pre-processing: understanding the problem, defining objectives, and identifying relevant physics. What quantities matter? Is the goal drag reduction, thermal management, or understanding flow patterns? These questions shape every subsequent decision.

Pre-processing includes geometry preparation—cleaning CAD models, closing gaps, and ensuring watertight surfaces—and mesh generation. Boundary conditions are specified: inlets, outlets, walls, symmetry planes. Initial conditions seed the solution. The solver selection phase involves choosing turbulence models, discretization schemes, and convergence criteria. Each choice reflects assumptions about the physics and trade-offs between accuracy and computational cost.

Once the simulation runs, post-processing extracts results. But reviewing contour plots is only the start. Engineers must validate that the solution obeys physical principles—does flow move from high to low pressure? Are conservation laws satisfied? Do predicted separation points align with expectations? This verification step distinguishes a competent CFD analyst from someone who merely generates colorful images.

Real-World Application: Vehicle Aerodynamics

Automotive aerodynamics illustrates the interplay between CFD and design constraints. A vehicle moving at highway speed experiences significant aerodynamic drag, which directly affects fuel consumption. Drag has two components: pressure drag, caused by flow separation and pressure differences between front and rear, and skin friction drag, from viscous shear along the body.

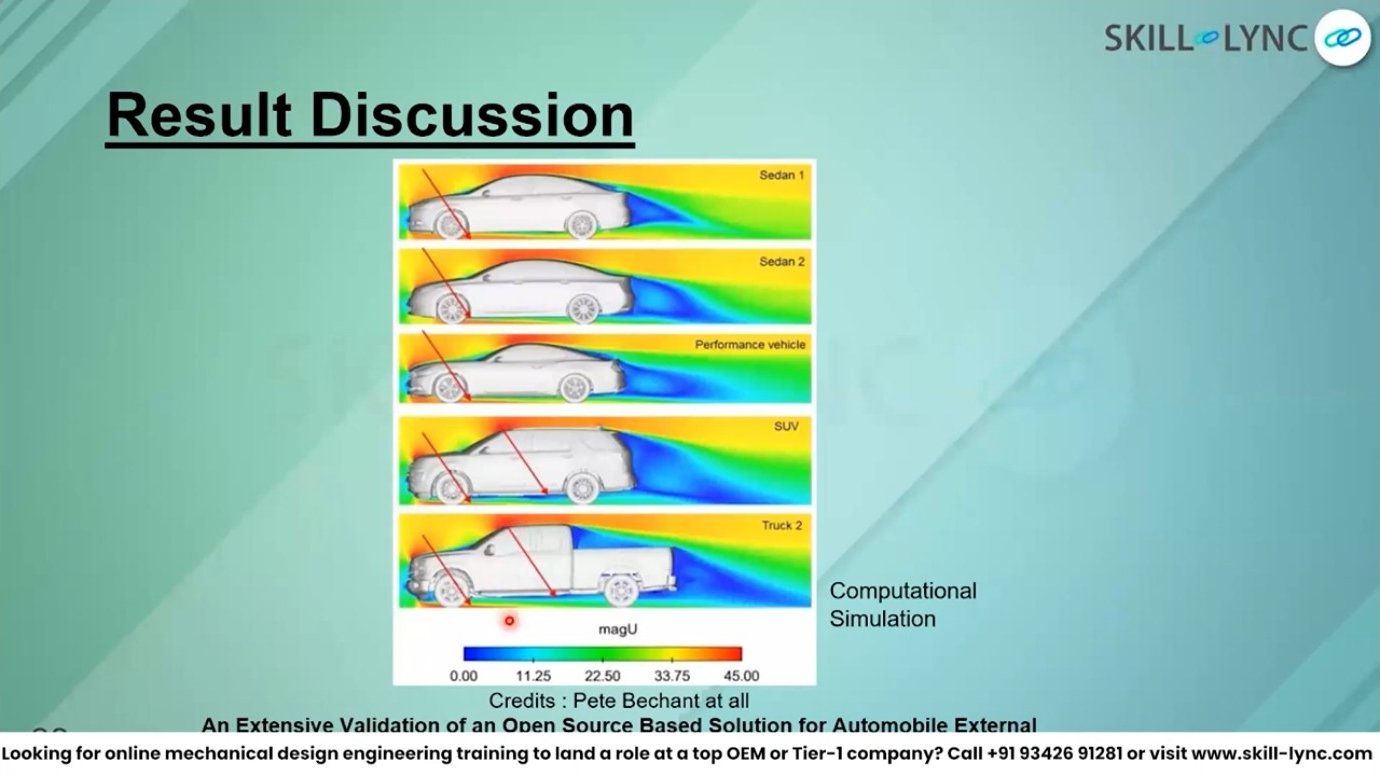

Sedans with smooth, tapered rear ends exhibit less separation than boxy SUVs or trucks. The underbody is a particularly sensitive region: exposed components like exhaust systems, suspensions, and axles create turbulence and drag. Performance vehicles often employ underbody panels to streamline flow, while SUVs, designed for off-road clearance, sacrifice aerodynamic efficiency for functionality.

CFD enables engineers to quantify these differences and explore design modifications. By simulating various rear spoiler angles, underbody treatments, or side mirror shapes, they identify configurations that reduce drag without compromising aesthetics or functionality. A 0.5% improvement in drag coefficient might seem trivial, but over a vehicle's lifetime, it translates to measurable fuel savings and reduced emissions.

Challenges Facing Modern CFD Practice

Despite decades of development, CFD still faces significant hurdles. Computational cost remains a barrier: a full-vehicle simulation can require 18–20 hours on high-performance clusters. Turbulence modeling introduces uncertainty, and capturing transient phenomena—unsteady wakes, vortex shedding—demands even more resources. Real-world flows involve complexity that models struggle to replicate: surface roughness variations, manufacturing tolerances, and ambient turbulence all affect outcomes in ways simulations approximate at best.

Automation and speed are active research areas. Can machine learning accelerate solver convergence? Can adaptive meshing reduce manual intervention? The industry pushes toward real-time simulation—where an engineer adjusts geometry and sees flow changes instantly—but that vision remains distant. For now, CFD is iterative, requiring expertise to set up, patience to run, and judgment to interpret.

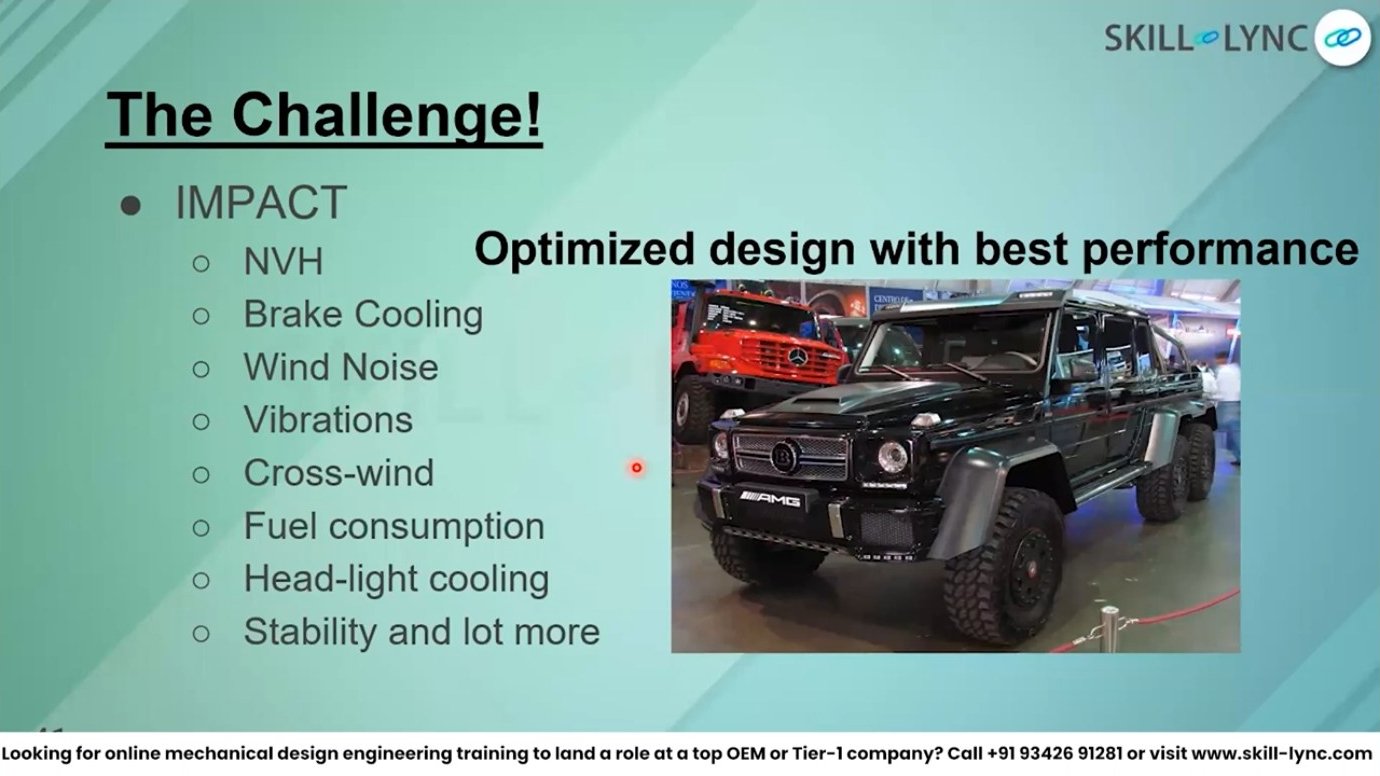

Another challenge is multi-physics coupling. Aerodynamics influences thermal management, which affects material choice, which impacts structural integrity. Solving these domains in isolation misses critical interactions. Integrated simulations that couple flow, heat transfer, and stress analysis offer a more holistic view but multiply complexity and computational demand.

Career Pathways in CFD

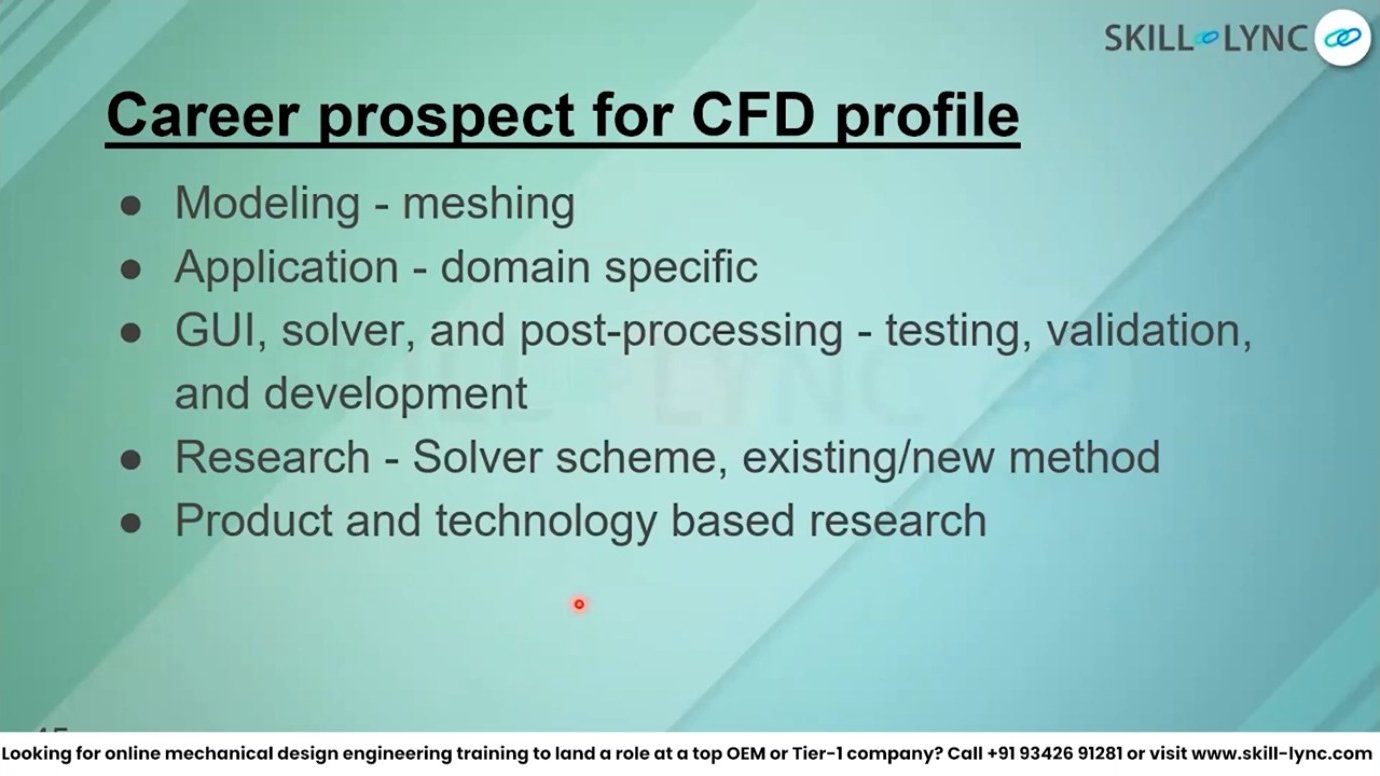

CFD expertise opens diverse career paths. Entry-level roles often focus on meshing and pre-processing—preparing geometries, generating grids, and setting up standard cases. With experience, engineers move into application-specific work: automotive aerodynamics, aerospace propulsion, HVAC system design, or biomedical flow modeling. Each domain demands both CFD knowledge and subject-matter expertise.

For those inclined toward software development, CFD offers opportunities in solver engineering—implementing new turbulence models, optimizing algorithms, or developing graphical interfaces. Research roles explore fundamental questions: improving turbulence closure, validating models against experiments, or developing methods for complex geometries. Some researchers use CFD as a tool to answer scientific questions; others refine CFD itself.

The field is narrow but growing. Demand exists in automotive, aerospace, energy, and increasingly in medical and environmental applications. Mastery requires not just software proficiency but a deep understanding of fluid mechanics, numerical methods, and the discipline to validate assumptions. Those who combine theoretical knowledge with practical skill find CFD a rewarding, if challenging, specialization.

The Future of Computational Fluid Dynamics

Looking ahead, CFD faces both opportunities and pressures. Product development cycles shorten, pushing for faster simulations without sacrificing accuracy. High-performance computing continues to advance, but the gap between available hardware and the complexity of real flows persists. Direct numerical simulation remains a research tool for canonical problems; practical engineering still relies on models.

Emerging applications expand CFD's reach. Medical researchers simulate blood flow through arteries to understand cardiovascular disease. Environmental engineers model pollutant dispersion in urban areas. Renewable energy projects optimize wind turbine placement and blade design. Each application brings unique challenges and demands tailored approaches.

Machine learning and AI hold promise for accelerating workflows—predicting flow fields from geometry, automating mesh generation, or identifying optimal designs through intelligent sampling. But these tools are complements, not replacements. Understanding the physics remains essential. A simulation that violates conservation laws or produces non-physical results is worthless, no matter how fast it runs.

Ultimately, CFD is a tool for insight. It cannot replace physical testing entirely, but it transforms how engineers approach design. By enabling rapid iteration, exploring otherwise inaccessible conditions, and revealing flow details invisible to the eye, computational fluid dynamics has become indispensable. The best practitioners wield it with both confidence and humility, knowing its power and respecting its limits.
